| Product Features |
|---|
| 1. LED display, clear and concise interface. |
| 2. Fast heating speed, even heating, accurate temperature control, high stability, low energy consumption, and no noise. |
| 3. Built-in temperature deviation calibration function, automatic fault detection and buzzer alarm function. |
| 4. Built-in over-temperature protection device for safer and more reliable use, and extended machine service life. |
| 5. The product is designed to be compact and tight, occupying a small space range, bringing more freedom and convenience. |
| 6. Multiple module options and replacements for easy cleaning and disinfection of various test tubes. |
| Technical Parameters | |
|---|---|
| Model: | DH-10 |
| Temperature Control Range: | ambient temperature+5℃ ~ 100℃ |
| Heating time: | ≤ 30 minutes (from 20℃ to 100℃) |
| Temperature Stability (at @40~100℃): | ≤±0.5℃ |
| Max Temperature Difference for Modules at 40℃: | 0.3℃ |
| Temperature Uniformity of Modules: | ≤±0.5℃ |
| Temperature Display Accuracy: | 0.1℃ |
| Max Timing: | 99h59min |
| Max Temperature: | 100℃ |
| Max Power: | 150W |
| Product Size: | 260×220×95mm |
| Product Weight: | ≤2.1kg |

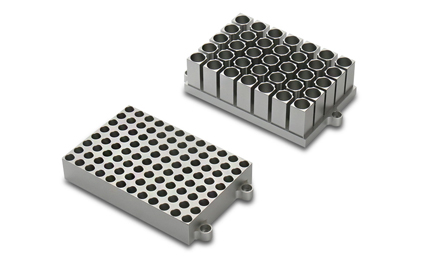

| Module Model Selection | |||
|---|---|---|---|
| Model | Aperture and Tube Number | Max Temperature | Max Speed |
| DW30 | 96×0.2ml standard plate | 100℃ | 1500rpm |
| DW31 | 54×0.5ml centrifuge tube | 100℃ | 1500rpm |
| DW32 | 35×1.5ml centrifuge tube | 100℃ | 1500rpm |
| DW33 | 35×2.0ml centrifuge tube | 100℃ | 1500rpm |
| DW34 | 15×0.5ml+20×1.5ml centrifuge tube | 100℃ | 1500rpm |
| DW35 | 24×Diameter≤φ12mm test tube | 100℃ | 1200rpm |
| DW36 | 32×0.2ml+25×1.5ml centrifuge tube | 100℃ | 1500rpm |
| DW37 | 32×0.2ml+10×0.5ml+15×1.5ml centrifuge tube | 100℃ | 1500rpm |
| DW38 | 103×67×30 (square trough module) | 100℃ | 1500rpm |
| DW39 | 96×0.2ml enzyme-linked immunosorbent assay (ELISA) plate (flat bottom) | 100℃ | 1500rpm |
| DW40 | 24×5ml centrifuge tube | 100℃ | 1200rpm |
| DW41 | 12×15ml | 100℃ | 600rpm |
| DW42 | 6×50ml | 100℃ | 600rpm |
| DW43 | 15×10ml | 100℃ | 600rpm |
| Other non-standard customization | Customizable | / | / |
| Single Page - Color Page | ||
|---|---|---|
| Name: | Author: | Action: |
| Constant temperature metal bath DH-10 | dry_bath | Download |
| DH-10 | Unit |
|---|---|
| Host Machine | Unit |
| Metal module | piece |
| Special Screwdriver (used for disassembling the mo | Piece |
| User manual | copy |
| Warranty card | copy |
| Certificate of qualification | copy |
|
